Description
- 2000W 50-220V 25A pulse width modulation motor controller is used to fits for electric stove lighting dimmer.
- The name of the Product is Motor Speed Controller.
- The model number is A63345. its voltage is between 50 to 220V.
- its current value is 25A. Its size is approximately 52*47*27mm/2*1.85*1.
- its operation environment temperature is between -20℃-40℃.
Specifications of PWM Variable Speed Motor Controller:
- The voltage is 50-220V.
- The current is 25A.
- Power is 2000W
- Its Size is 52*47*27mm/2*1.85*1in Operation
- Environment Temperature is between -20℃-40℃
Features of SCR Controlled Voltage Regulator:

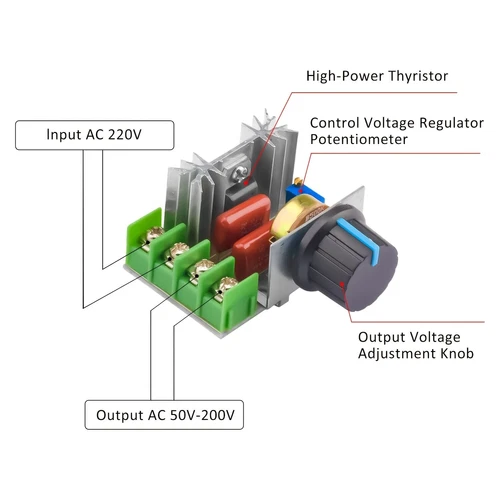

- This PWM Electronic Speed Controller uses high-power SCR which is bi-directional.
- Its output voltages are adjustable so we can adjust anywhere between 50V to 220V for the electrical appliances.
- It is good if we adjust the current up to 25A. By this method, we can solve the current problem of the heating wire resistance.
- We can adjust the PWM motor speed with it so it can be used for such as electric stoves, water heaters tuned thermal.
- It is also used in such as small motor speed, and electric iron thermostats.
- It is such for achieving dimming, thermostats, and also as a pressure regulator effect.
NOTE:
- Make Sure All Power is Disconnected Before You Attempting to Wire the Controller
- Cut any one of the battle line or zero line of the lamp or electrical appliances, and connect wires refer to the “wiring diagram”
- Turn on the power, and adjust the potentiometer. If the adjustment range is found to be narrow, please adjust the blue potentiometer on the product counterclockwise to set the maximum adjustment range to 50V to input voltage
