Description

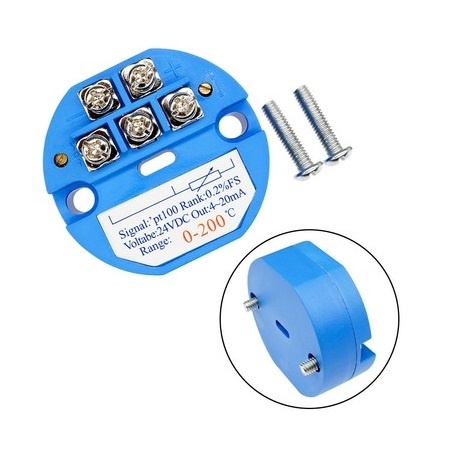

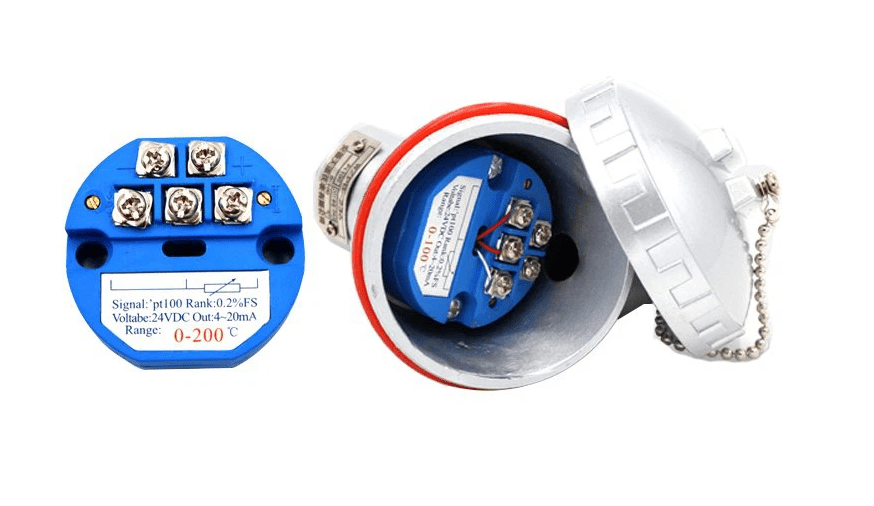

PT100 4-20mA Output Temperature Transmitter 0° to 200°
Features:
- Temperature Resistance: This transmitter is aseismic and temperature-resistant properties.
- 4-20mA Output: The device outputs a 4-20mA signal directly, which facilitates field installation and connects with the thermal resistance and thermocouple junction box.
- High for precision: It offers high for precision and low power consumption, operating reliably across a wide range of ambient temperatures.
- Adjustable Range: The transmitter allows for an adjustable range and includes a linear correction function, enhancing its adaptability.
- Cold End Compensation: This thermocouple temperature transmitter incorporates an automatic cold end compensation feature, make sure accurate temperature readings.
Specifications:
- Part Name: Temperature Transmitter
- Material: Plastic, Metal
- Size: Standard
- Color: Blue
- Sensor: for Pt100
- Measurement: 0 to 200°C
- Output: 4-20mA
- Operating voltage: DC 24V
- Accuracy: plus or minus 0.2% FS
- Dimensions: 45mm (1.77inch) in diameter
- Material: Plastic
Note:
- The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
- Please allow slight manual measurement deviation for the data.
