Description

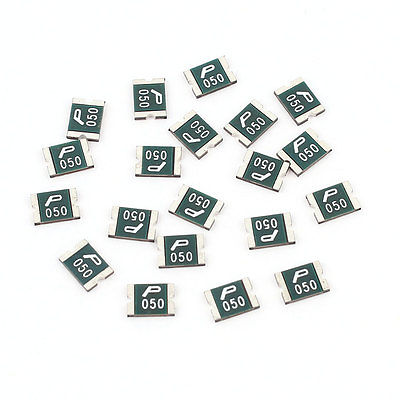

Resettable Fuse 500mA
The MINISMDC050F-2 from TE Connectivity is a surface mount PolySwitch resettable device in 45mm x 32mm size. Its smaller size helps to save board space and cost. It optimizes design flexibility and compatible with high volume electronics assembly.
- UL, CSA and TUV approved
- Higher voltage ratings allow use in new applications
- Hold current of 0.5A at room temperature
- Maximum voltage of 24V
- Trip current of 1A at room temperature
- Maximum current of 100A
- Maximum resistance of 1ohm (post trip)
- Maximum time to trip is 0.15sec
- Maximum power dissipation of 0.8W
- Operating temperature range from -40°C to 85°C
Applications
Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Footnotes
Operation in circuits with a large inductance can generate circuit voltage (Ldi/dt) above rated voltage of device.
Warnings
This device is intended for protection against overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
Technical Datasheet: (EN)
