Multifunction Automatic Incubator Controller

Description

Four screen four display Automatic Incubator Controller

The automatic multi-function incubator researched and produced by our company uses the more popular microcomputer-based technology using the latest micro-electronics technology and new components),equipping with the imported digital temperature sensor and France moisture sensitive capacitance humidity sensor, which makes this instrument miniaturization, intelligent, high measurement accuracy. This incubator is stable and reliable, time-saving, labor-saving, and easy-to-use. It is the ideal incubation equipment for propagation of poultry and rare birds and small and medium-sized hatchery.

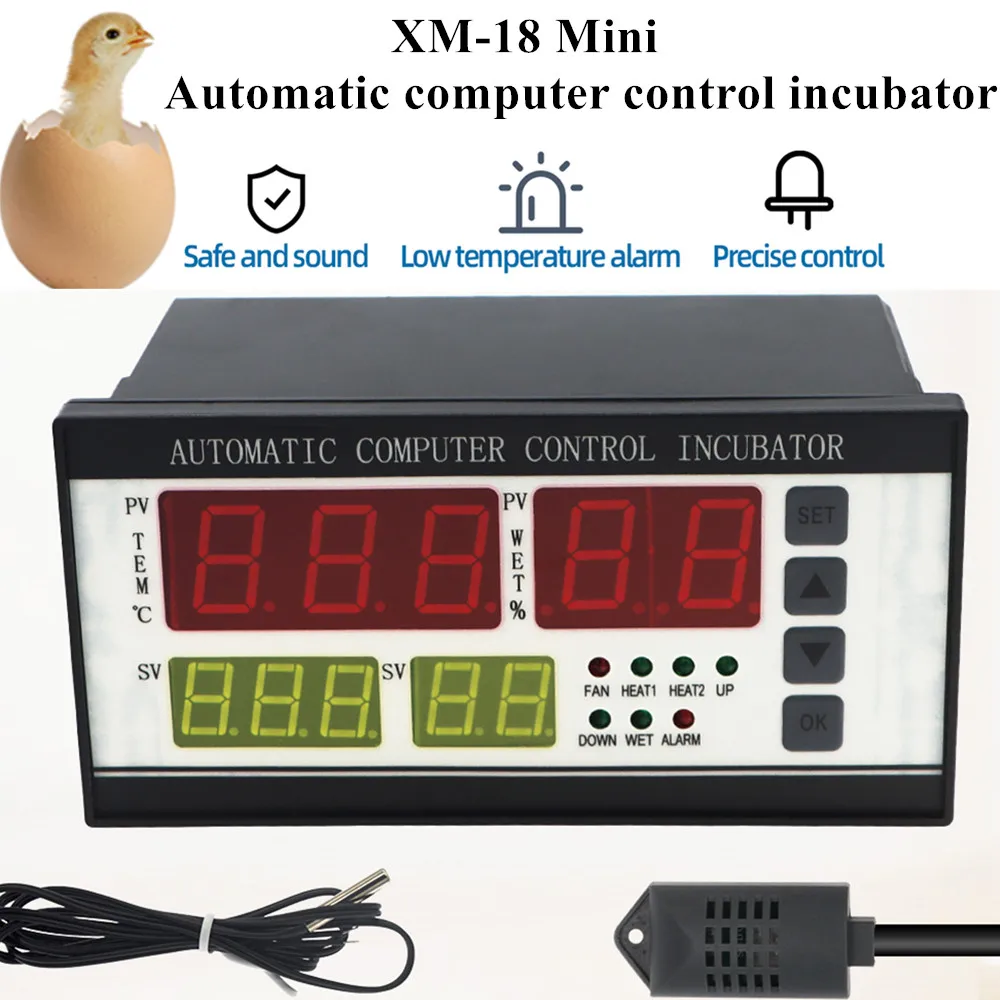

Option 1： XM-18

Function:

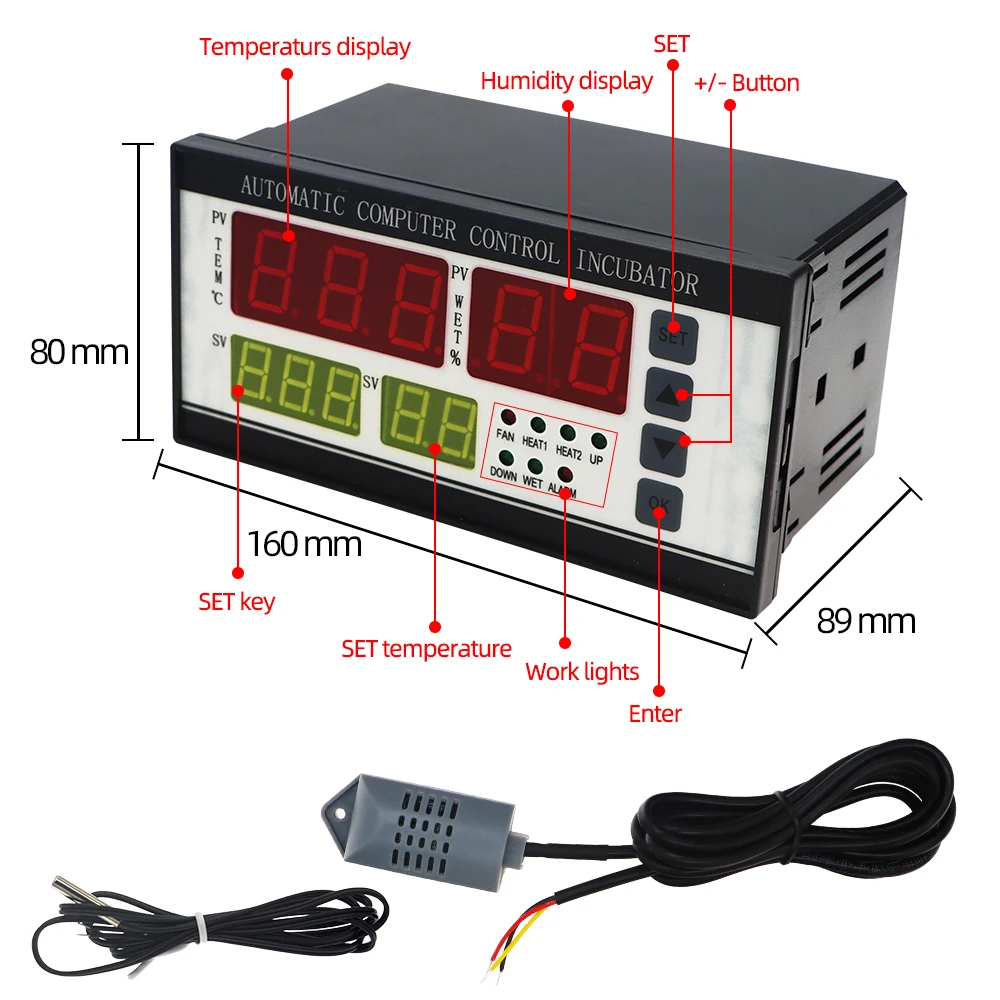

1. Digital displaying of temperature, humidity
2. Full automatically temperature controlling
3. Full automatically humidity controlling
4. Full automatically eggs turning
5. Full automatically alarming
6. Full automatically ventilator
7. Back emergency system

Main Technical Index:

1. Temperature display range: 0 ~ 99.9 ℃
2. Temperature measurement accuracy: ± 0.1 ℃
3. Humidity display range: 0-99% RH
4. Humidity control accuracy: ± 3% RH
5. Number of signal-output: 7 Road ( over-temperature, temperature control, insufficient temperature, egg-left turning, egg right-turning, humidity control, alarm )
6. The maximum output load current: temperature control, insufficient temperature <= 8A/AC 220V, over-temperature, egg-left turning, egg right-turning, humidity control, alarm<= 1A /AC 220V
7. Number of egg-turning : Maximum record 999 times.
8. Cycle of egg-turning: from 0 to 999 minutes (factory set at 90 minutes)
9. Turn the eggs time: 0 to 999 seconds (factory set at 180 seconds)
10. Ventilation cycle : 0-999 minutes (factory set at 120 minutes)
11. Ventilation time: 0-999 seconds (Factory set at 30 seconds)
12. The measuring line length: About 2 meters

Working conditions:

1. Power Supply : AC 160V ~ 240V, 50Hz  ( choose the one you need )
2. Relative humidity: less than 85%
3. Ambient temperature: -10 ℃~ 60 ℃
